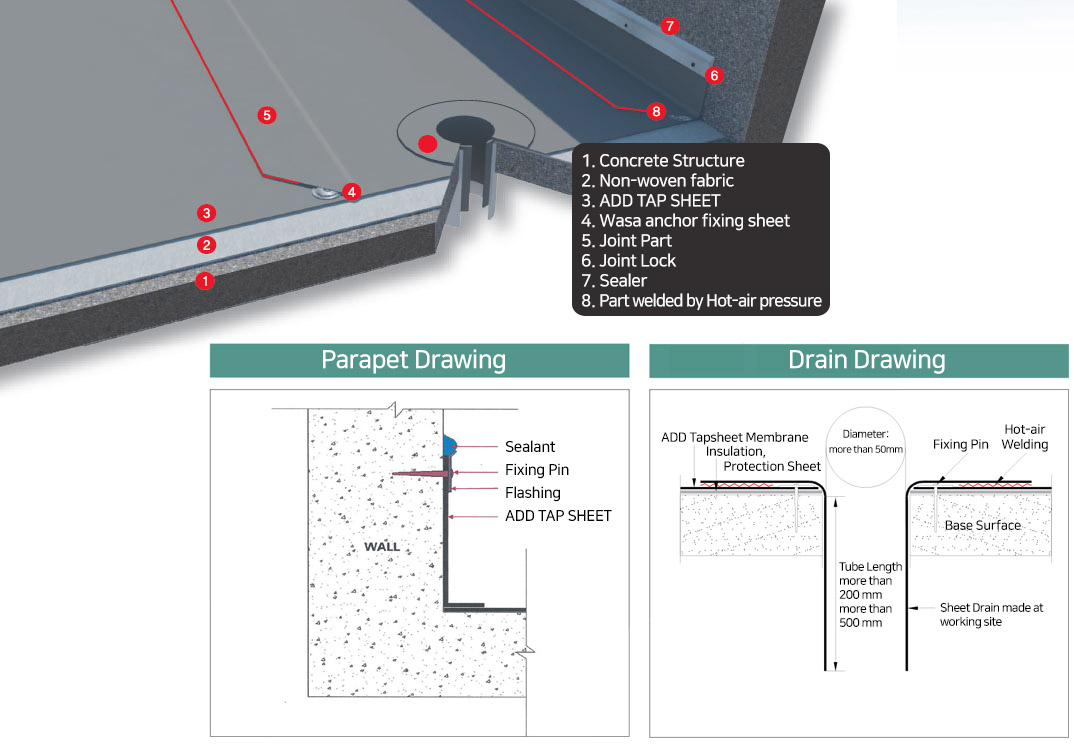

Working Drawing of PVC Flat Roof

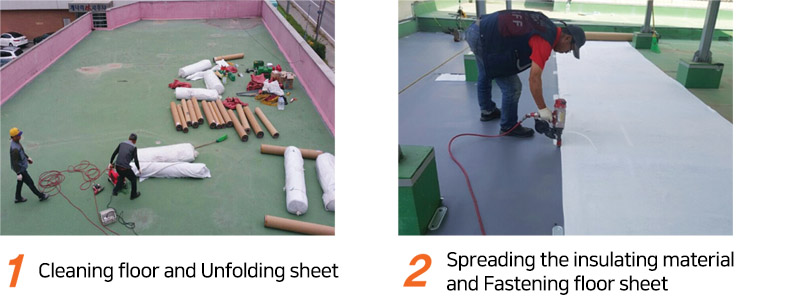

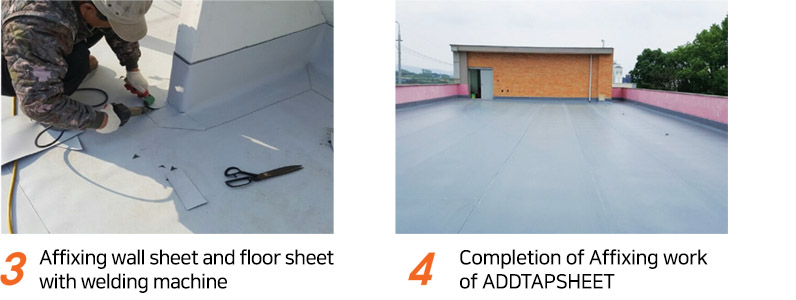

Work Order of Add Tap Sheet for Flat Roof

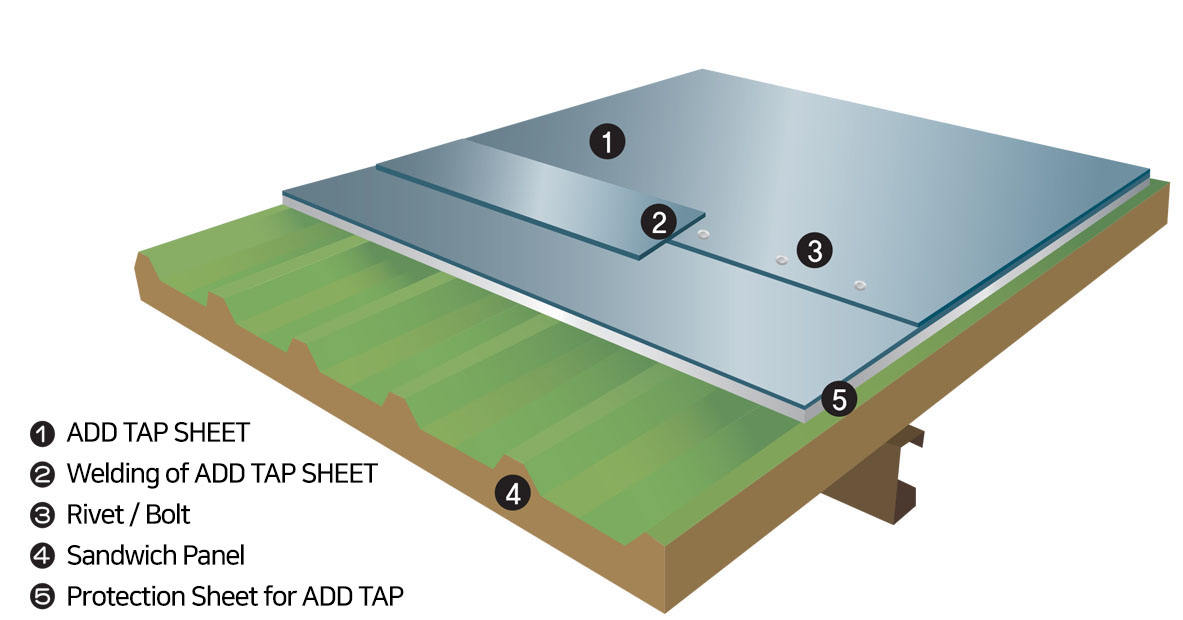

Panel Roof Drawing(Patent No.10-20 16992)

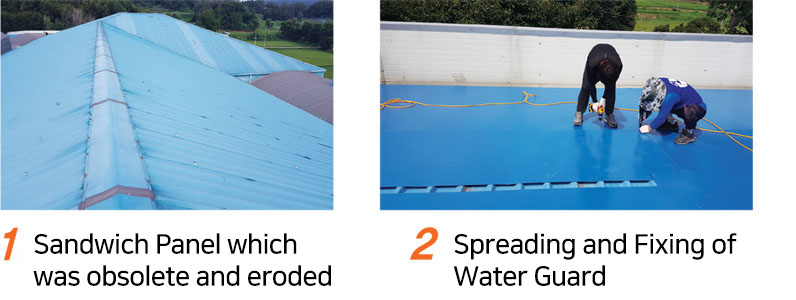

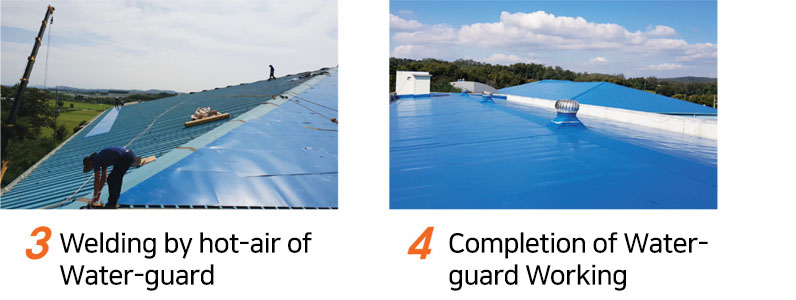

Working Order of Water-guard Panel Roof

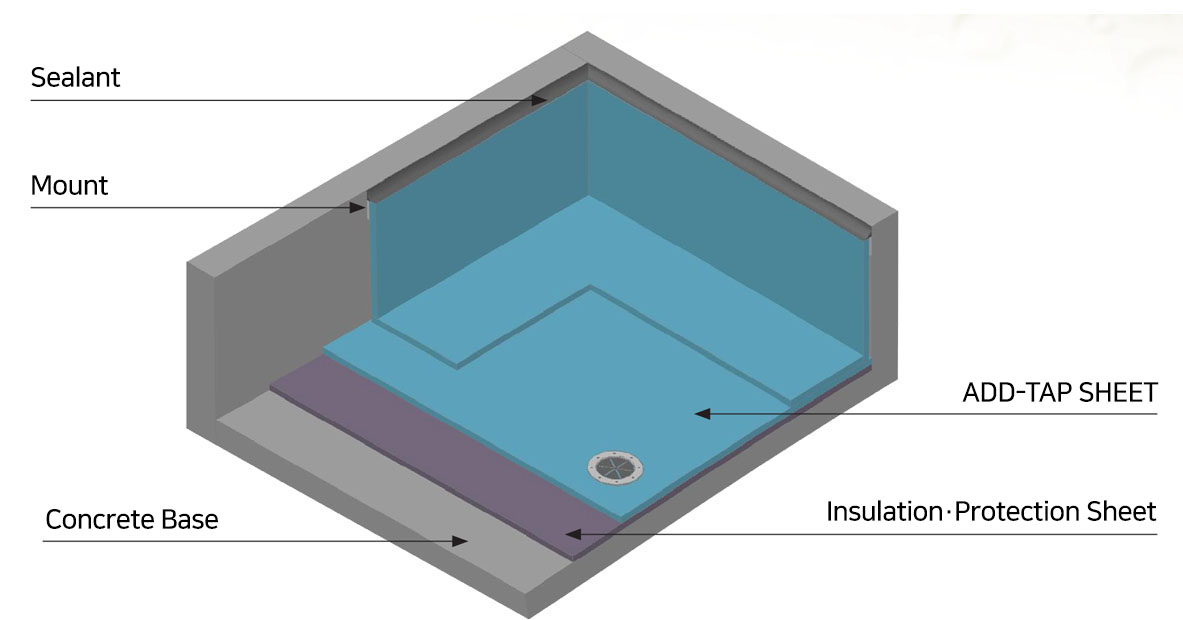

Waterproofing Sheet Drawing for Swimming Pool

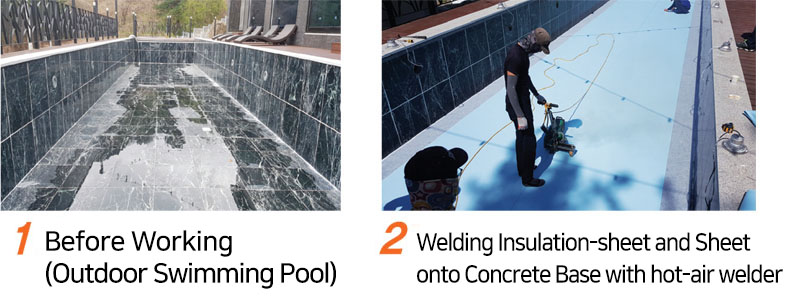

Working Order of ADDTAPSHEET Swimming Pool

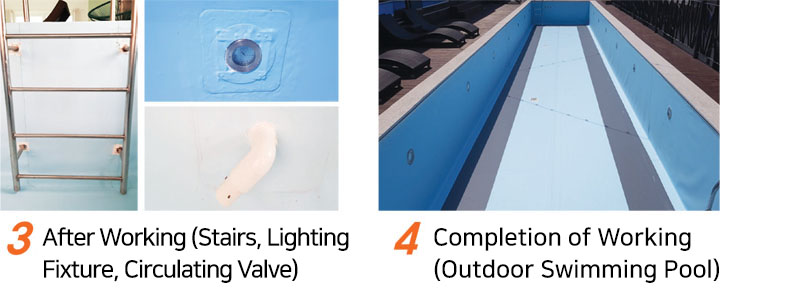

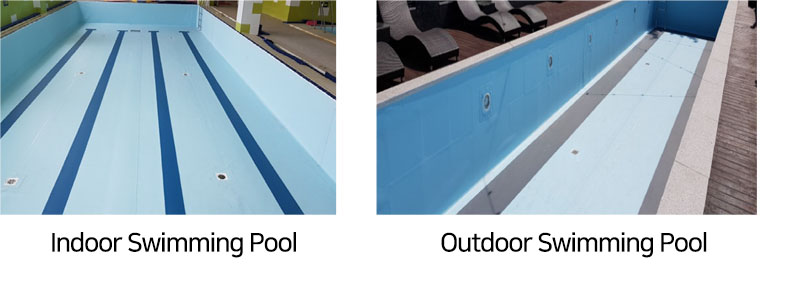

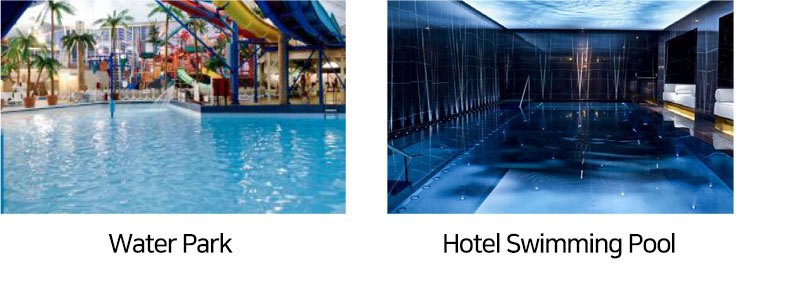

Working Examples of ADDTAPSHEET Swimming Pool

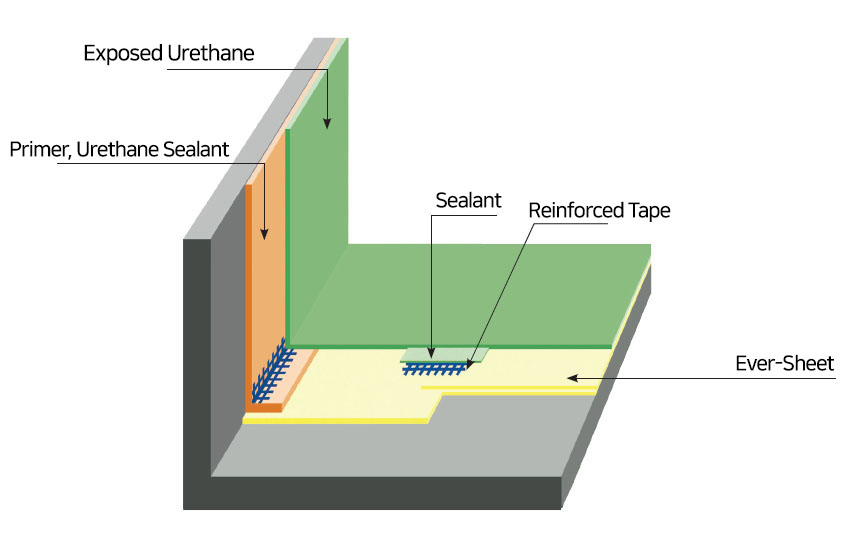

Concept Drawing of EVERSHEET Multi-Waterproofing (Exposure Method)

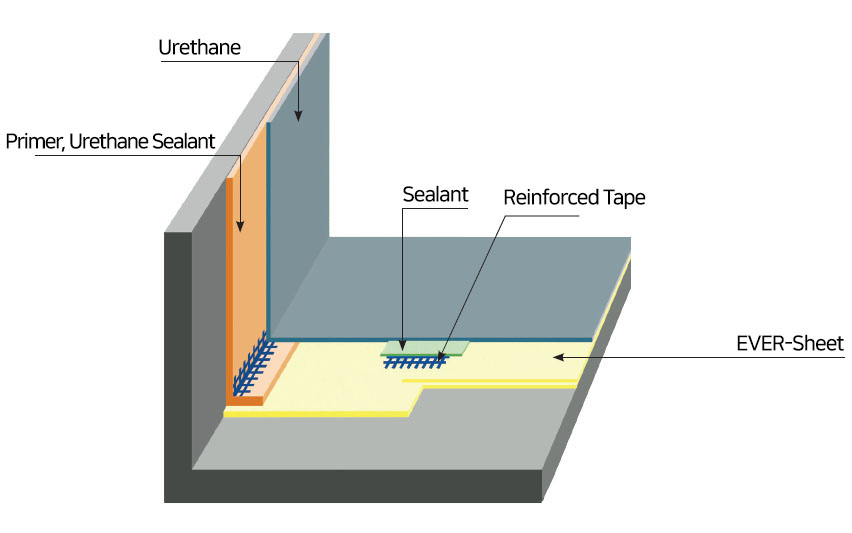

Concept Drawing of EVERSHEET Multi-Waterproofing (Non-Exposure Method)

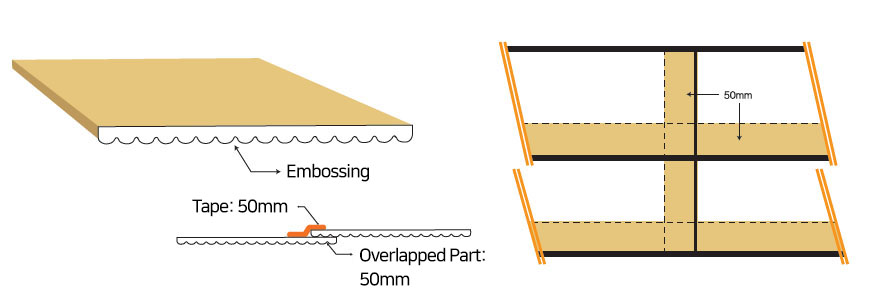

Working Method of EVER-GUARD(Protector of Waterproofing Membrane)

Comparison of EVER-GUARD & PE Foam

Item	EVER-GUARD	Protector of PE Foam Waterproofing Membrane
Outline	PVC Sheet	PE Foam
Working Method	① Placing EVER-Guard ② Reinforcing jointed part	① Removing protector of cover-sheet ② Fully Bonding Method ③ Work Completion
Advantages	Excellent in Constructability Excellent in tension·tearing·stretch Excellent in Impact Resistance & Cave-in Resistance Having flame retarding Excellent in Oil Resistance & Chemical Resistance Excellent in Waterproofing Less Wastes without protective papers Skilled Workers are not necessary due to simple working Less breakages of concrete base due to thin protective layer Easy and simple modification after installation	Fully Bonding makes sheet strong against wind Having Lots of working experiences Strong against external shocks due to its excellence in cushion and restoration
Disadvantages	Weak in strong wind due to partially bonding method Difficult in Wall Work	Fully bonding work makes re-bonding difficult Absorbing moisture damages waterproofing membrane Skilled workers are required Humidity makes bonding-work difficult Lack of cushion can create cracks in concrete base There are lots of wastes such as protective papers Vulnerable to fire

EVER-GUARD
Outline PVC Sheet
Working Method ① Placing EVER-Guard ② Reinforcing jointed part
Advantages Excellent in Constructability Excellent in tension·tearing·stretch Excellent in Impact Resistance & Cave-in Resistance Having flame retarding Excellent in Oil Resistance & Chemical Resistance Excellent in Waterproofing Less Wastes without protective papers Skilled Workers are not necessary due to simple working Less breakages of concrete base due to thin protective layer Easy and simple modification after installation
Disadvantages Weak in strong wind due to partially bonding method Difficult in Wall Work

Protector of PE Foam Waterproofing Membrane
Outline PE Foam
Working Method ① Removing protector of cover-sheet ② Fully Bonding Method ③ Work Completion
Advantages Fully Bonding makes sheet strong against wind Having Lots of working experiences Strong against external shocks due to its excellence in cushion and restoration
Disadvantages Fully bonding work makes re-bonding difficult Absorbing moisture damages waterproofing membrane Skilled workers are required Humidity makes bonding-work difficult Lack of cushion can create cracks in concrete base There are lots of wastes such as protective papers Vulnerable to fire
